X6 series electrical knockout enclosure
X6 series range of electrical enclosures provides a number of metric sized knockouts for cable entry, making it ideal for junction boxes in industrial settings with IIoT applications. Clear lid and solid top options are available in both polycarbonate and ABS with UL94-V0 ratings and IP66/IP67 ingress protection. This heavy-duty enclosure safeguards your electronics in a number of industry sectors.
Key features and accessories:

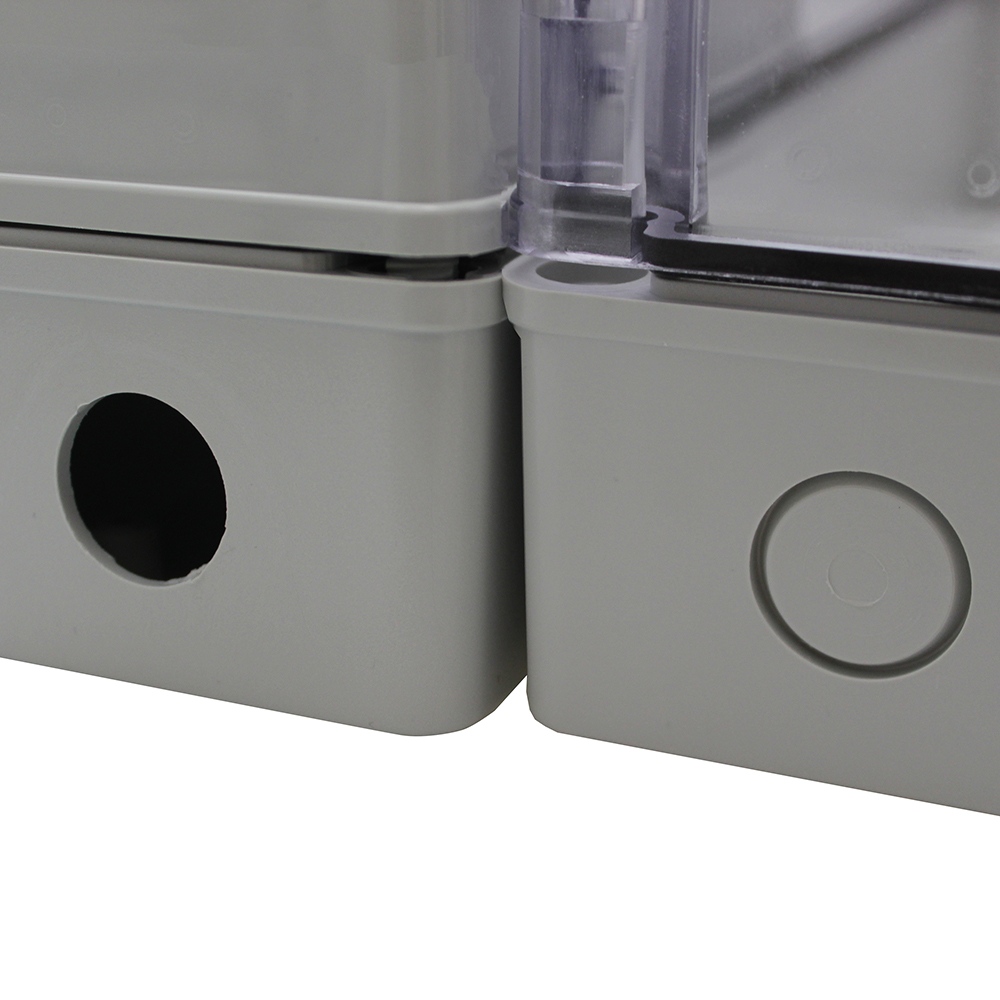

Industry standard sized integrated knockouts

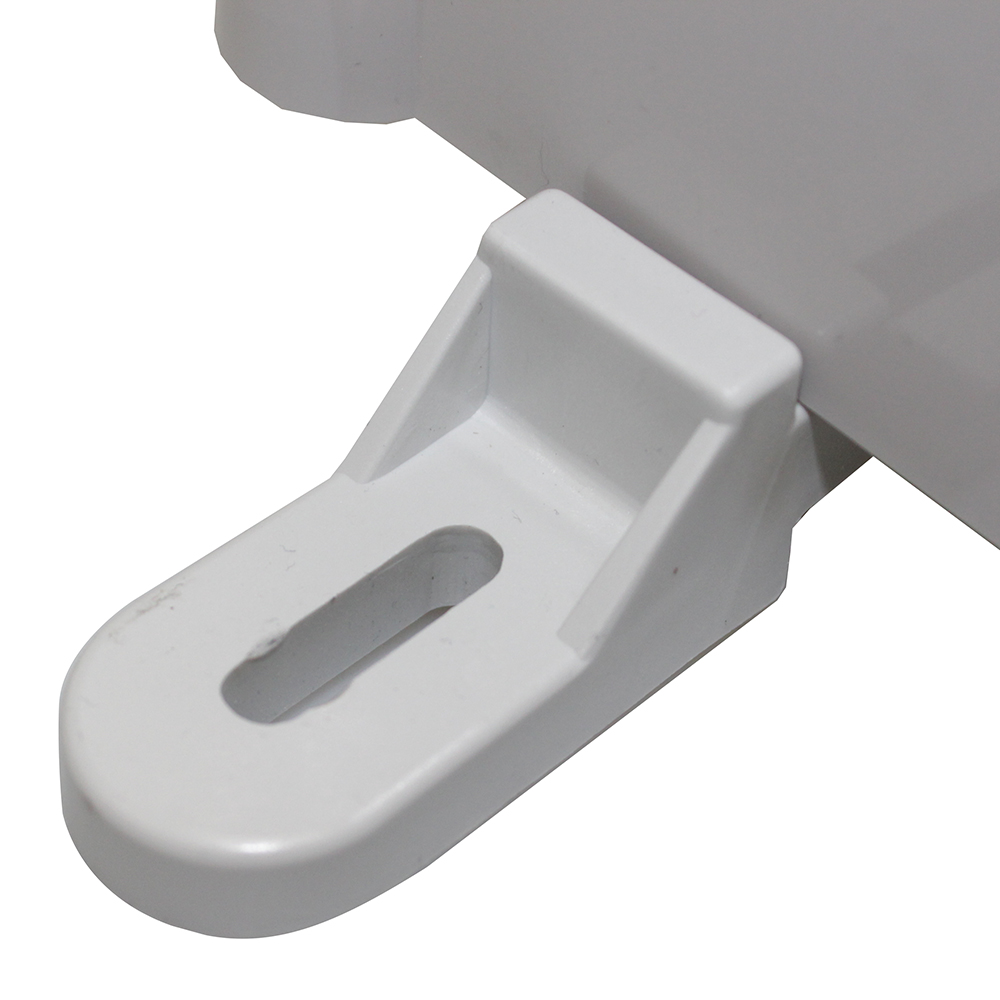

Wall/surface mount bracket accessory
IP66/67 IK08 protection ratings
Steel mounting plate accessory
Polycarbonate
| Solid lid | Clear lid | Length | Width | Height | Product detail |
| CHDX6-221 | CHDX6-221C | 110mm |
80mm | 70mm | Find out more |
| CHDX6-222 | CHDX6-222C | 110mm | 80mm |
85mm | Find out more |
| CHDX6-223 | CHDX6-223C | 130mm | 80mm |
70mm | Find out more |
| CHDX6-224 | CHDX6-224C | 130mm | 80mm | 85mm | Find out more |
| CHDX6-225 | CHDX6-225C | 180mm | 80mm | 70mm | Find out more |
| CHDX6-226 | CHDX6-226C | 180mm | 80mm | 85mm | Find out more |
| CHDX6-227 | CHDX6-227C | 250mm | 80mm | 70mm | Find out more |
| CHDX6-228 | CHDX6-228C | 250mm | 80mm | 85mm | Find out more |
| CHDX6-229 | CHDX6-229C | 175mm | 127mm | 75mm | Find out more |
| CHDX6-230 | CHDX6-230C | 175mm |
127mm | 100mm |
Find out more |
ABS
| Solid lid | Clear lid | Length | Width | Height | Product details |
| CHDX6-321 | CHDX6-321C | 110mm | 80mm | 70mm | Find out more |
| CHDX6-322 | CHDX6-322C | 110mm | 80mm | 85mm | Find out more |
| CHDX6-323 | CHDX6-323C | 130mm | 80mm | 70mm | Find out more |
| CHDX6-324 | CHDX6-324C | 130mm | 80mm | 85mm | Find out more |
| CHDX6-325 | CHDX6-325C | 180mm | 80mm | 70mm | Find out more |
| CHDX6-326 | CHDX6-326C | 180mm | 80mm | 85mm | Find out more |
| CHDX6-327 | CHDX6-327C | 250mm | 80mm | 70mm | Find out more |
| CHDX6-328 | CHDX6-328C | 250mm | 80mm | 85mm | Find out more |
| CHDX6-329 | CHDX6-329C | 175mm | 127mm | 75mm | Find out more |
| CHDX6-330 | CHDX6-330C | 175mm | 127mm | 100mm | Find out more |
View our full range of X6 Series enclosures or call our experienced technical sales team to discuss your requirements on 01638 716101. Alternatively please complete the enquiry form below or email sales@camdenboss.com.
