X8 series electrical knockout enclosure
This heavy duty consumer unit enclosure features a hinged door and opens up a vast variety of IoT, IIoT and industry 4.0 applications for the X series. Having the door on a hinge transforms a standard enclosure into something more, allowing the housing to be used as an electrical distibution product, utilising the DIN rail capabilities. Available in either ABS or polycarbonate, with a solid or transparent lid.
Key features:

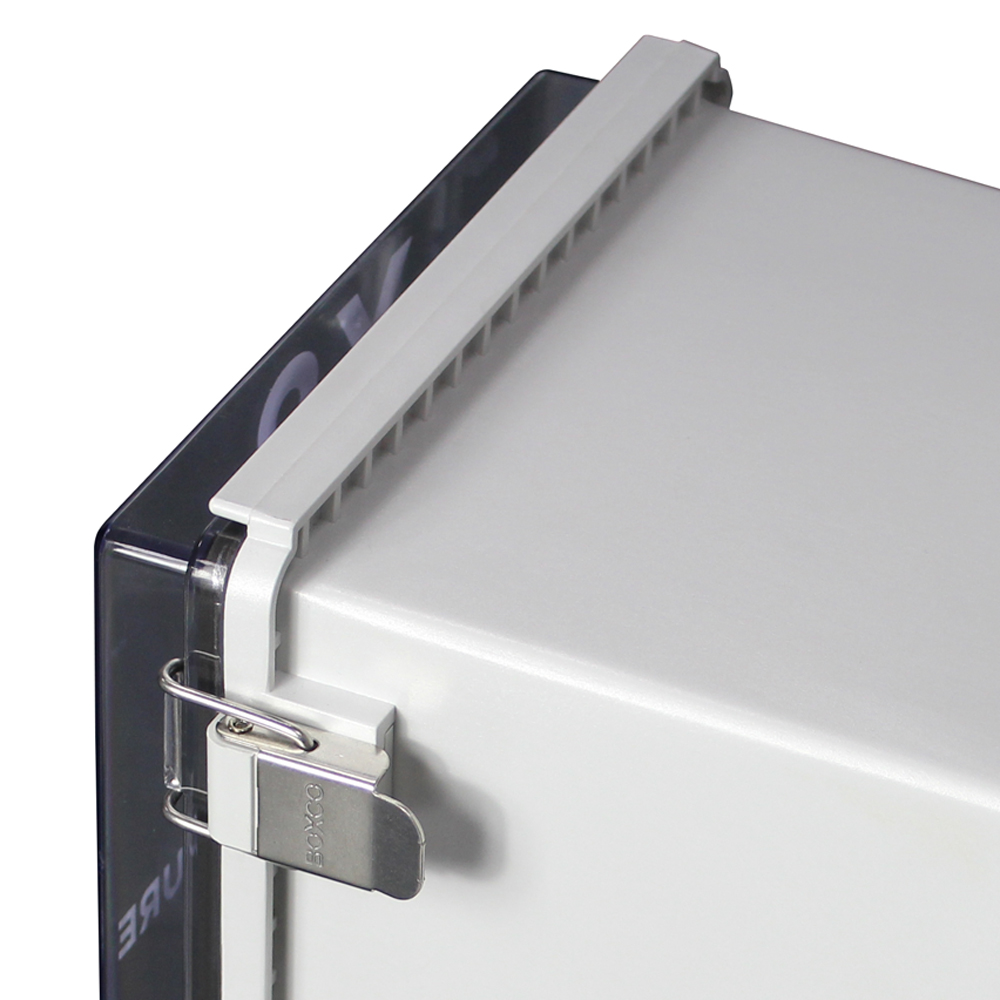

Hood avoids moisture sitting on the seal whilst lid is closed

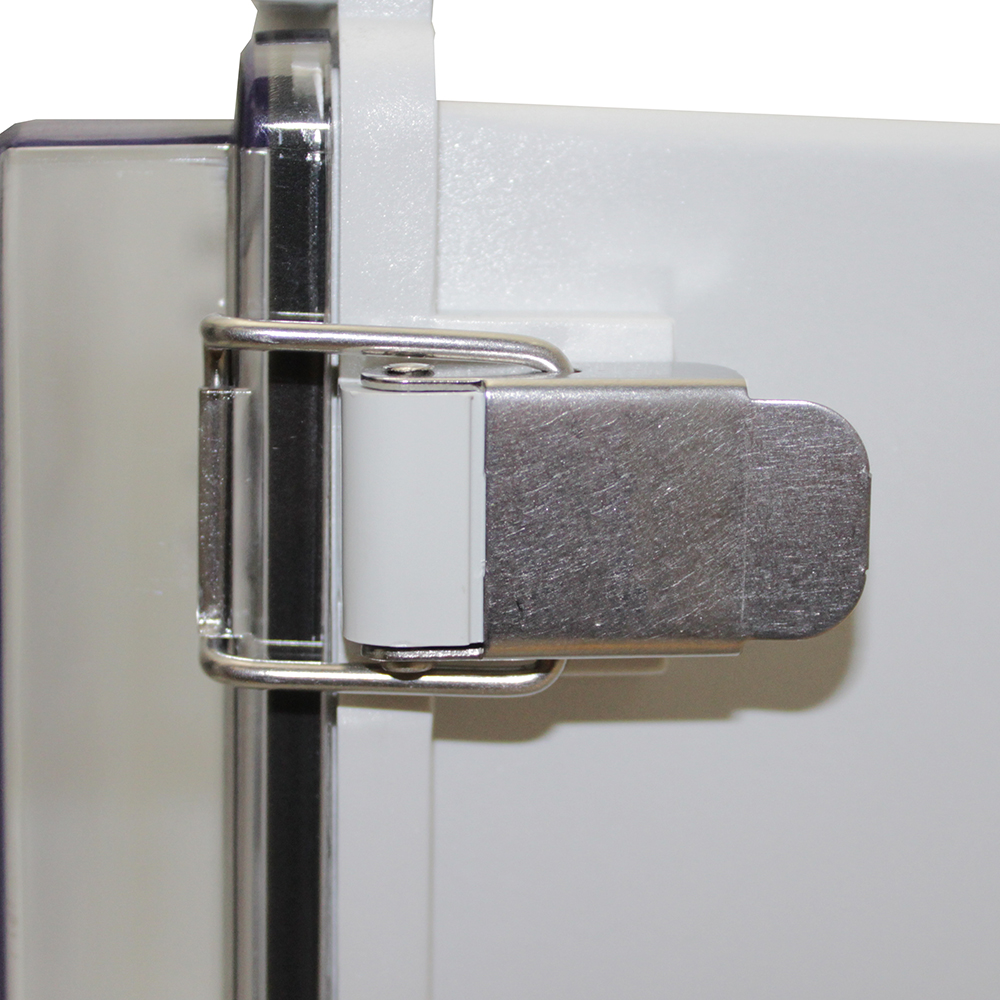

Hinged lid
with latches

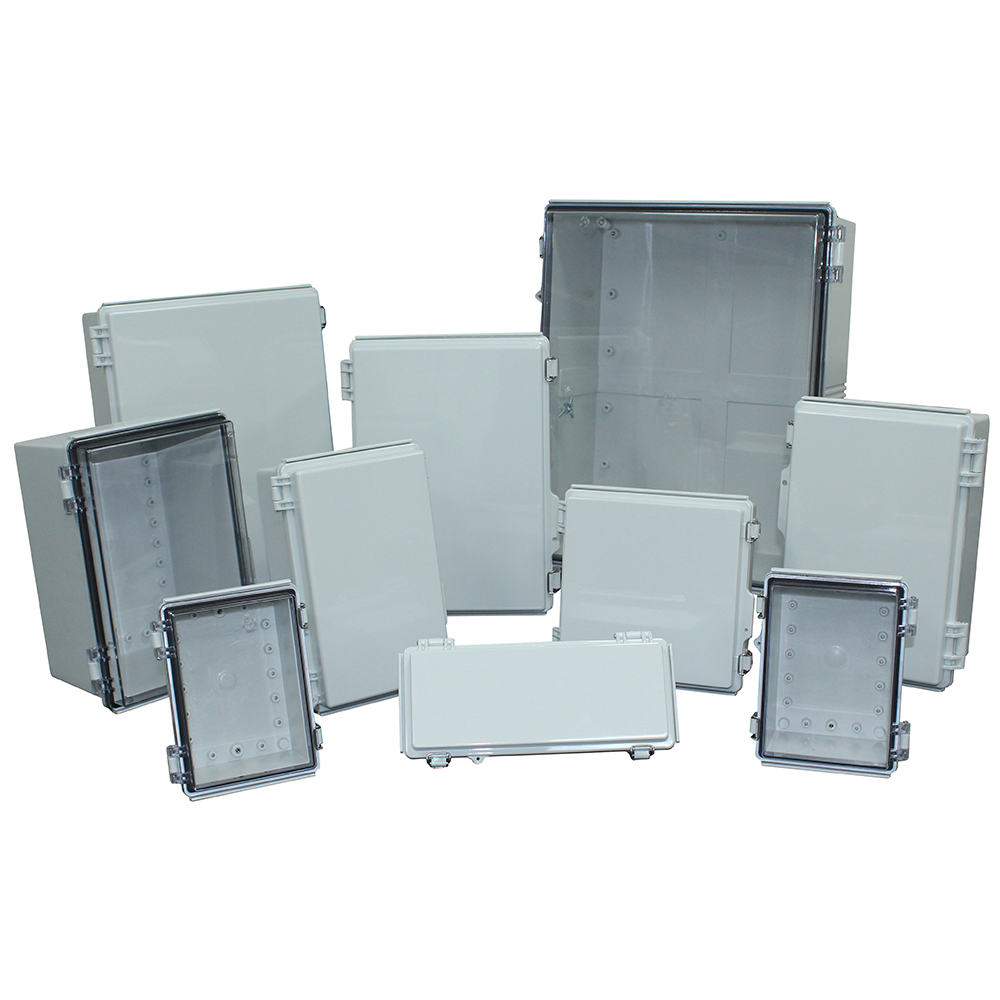

Available in a wide range of sizes

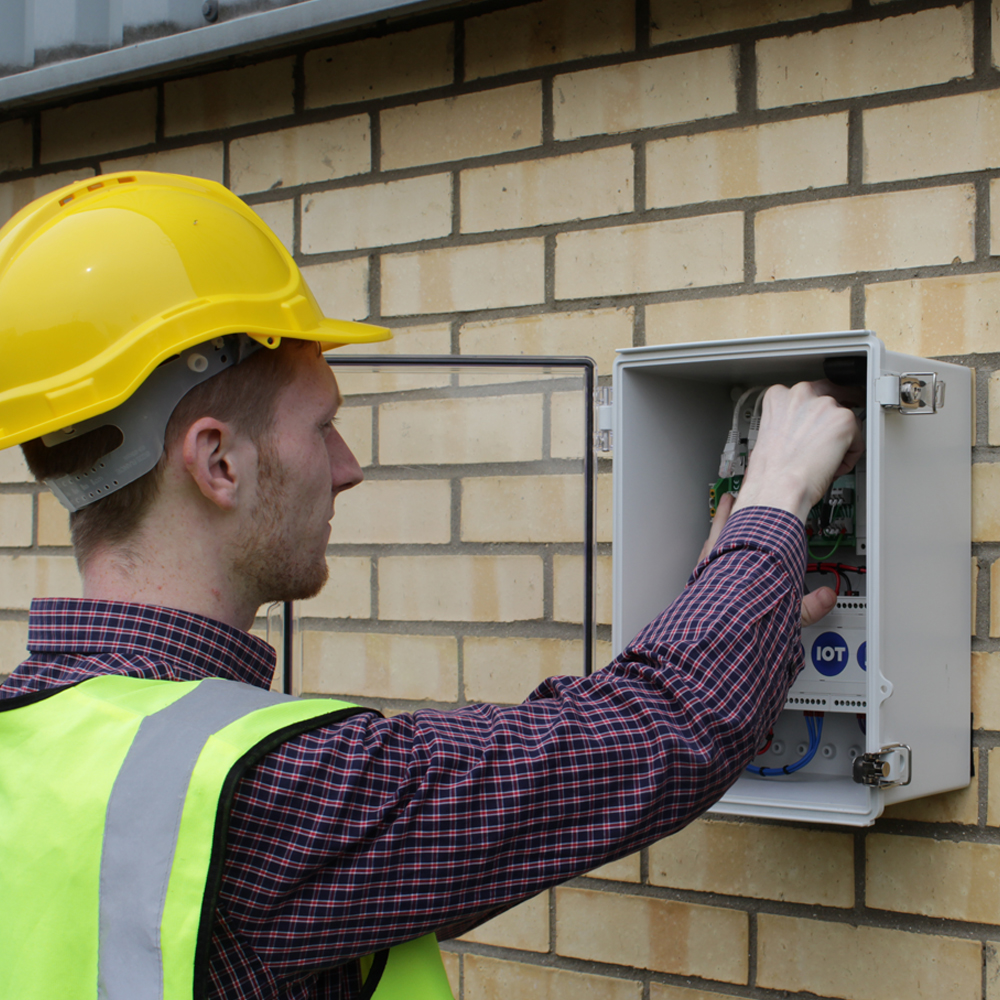

Ideal for use as an industrial
IoT hub
Accessories:

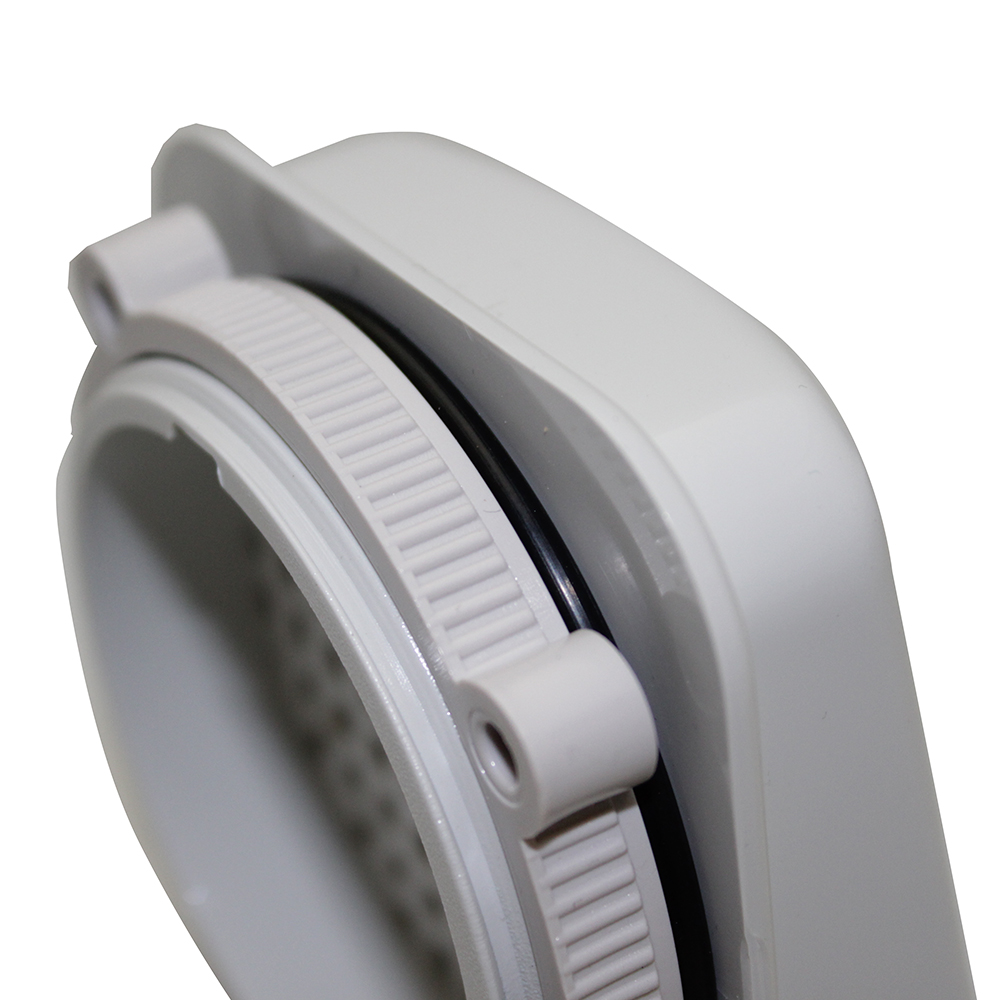

Vents (available in two sizes)

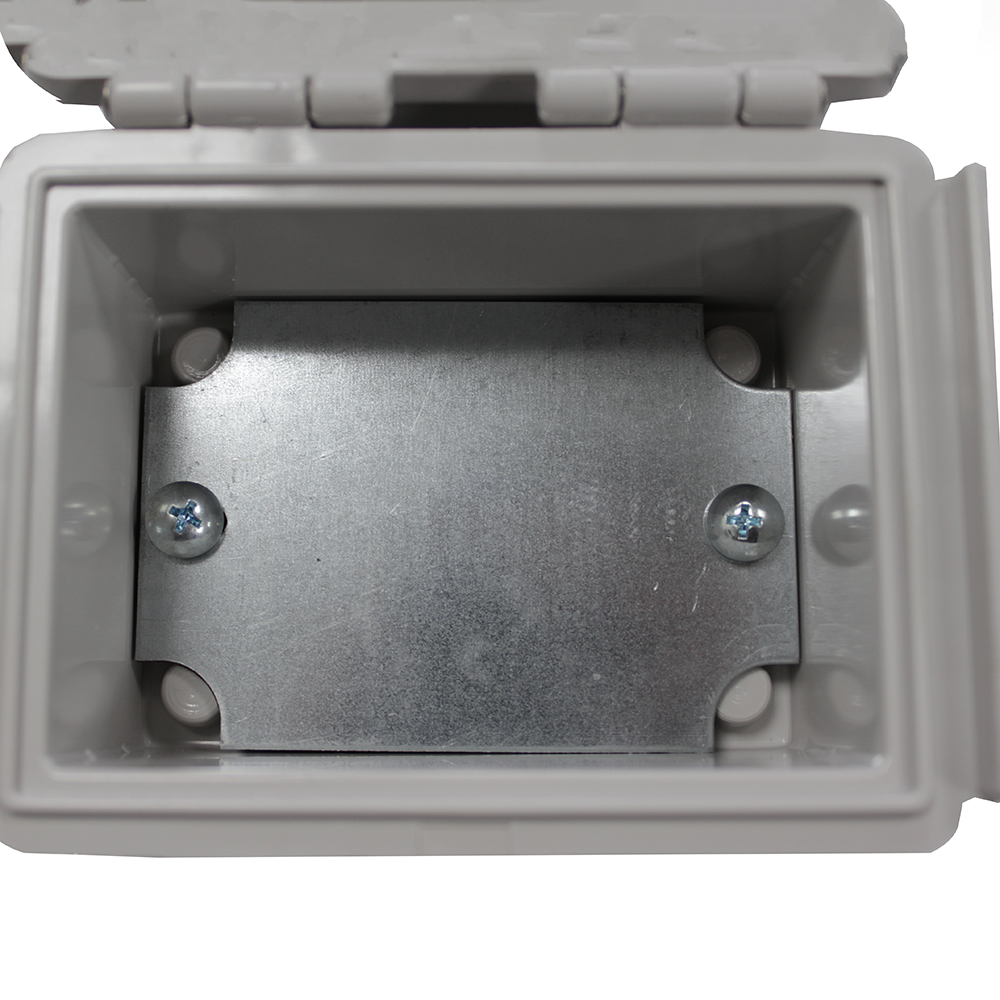

Steel mounting plate

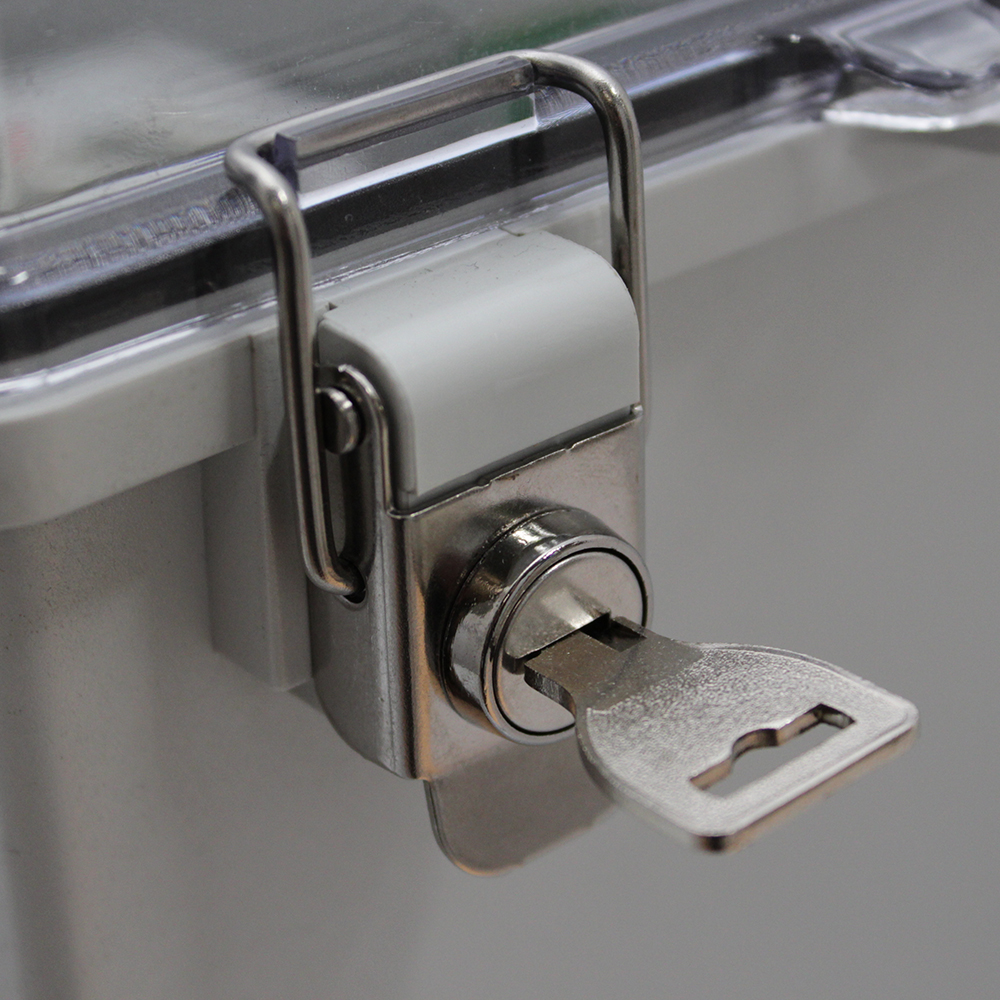

Integral locks

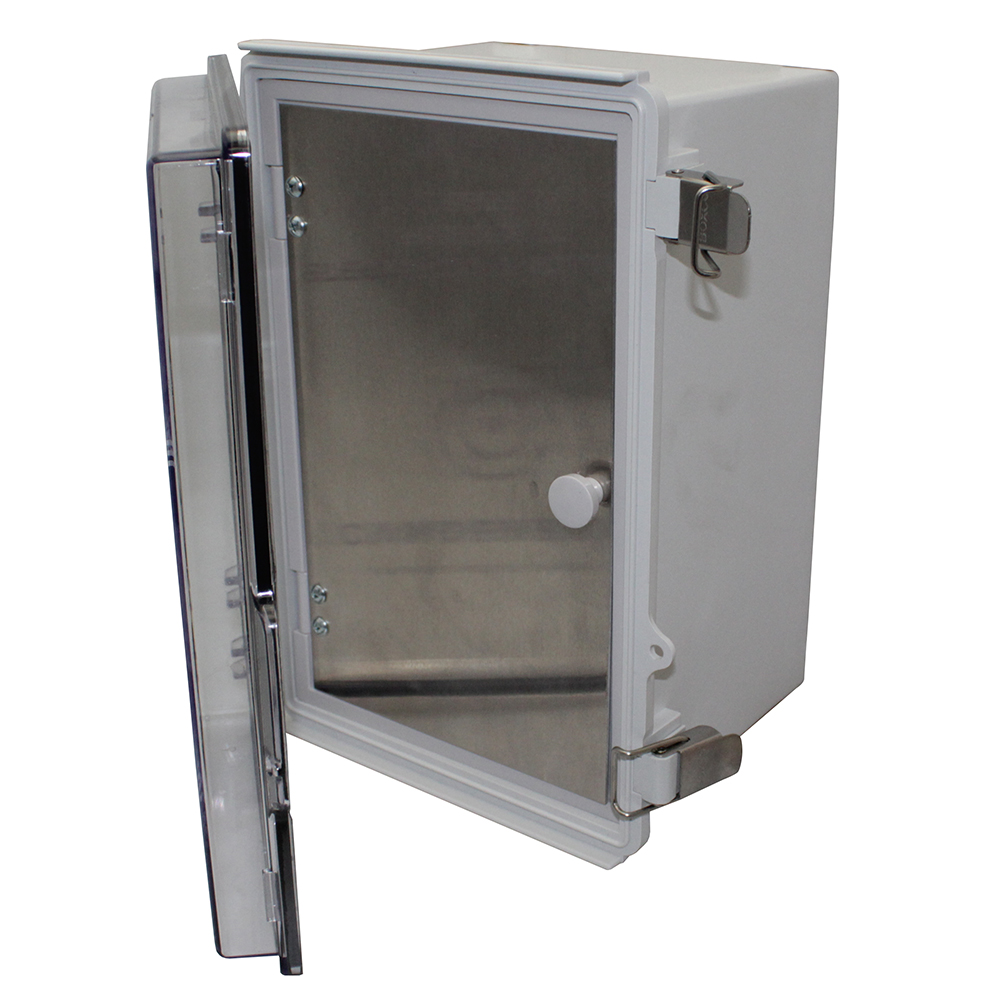

Dual door kit
Polycarbonate
| Solid lid | Clear lid | Length | Width | Height | Product detail |
| CHDX8-221 | CHDX8-221C | 260mm | 110mm | 75mm | Find out more |
| CHDX8-222 | CHDX8-222C | 260mm | 110mm | 100mm | Find out more |
| CHDX8-223 | CHDX8-223C | 185mm | 135mm | 85mm | Find out more |
| CHDX8-224 | CHDX8-224C | 185mm | 135mm | 100mm | Find out more |
| CHDX8-225 | CHDX8-225C | 220mm | 170mm | 110mm | Find out more |
| CHDX8-226 | CHDX8-226C | 270mm | 170mm | 110mm | Find out more |
| CHDX8-227 | CHDX8-227C | 300mm | 200mm | 150mm | Find out more |
| CHDX8-228 | CHDX8-228C | 300mm | 200mm | 180mm | Find out more |
| CHDX8-229 | CHDX8-229C | 210mm | 210mm | 100mm | Find out more |
| CHDX8-230 | CHDX8-230C | 350mm | 250mm | 180mm | Find out more |
| CHDX8-231 | CHDX8-231C | 300mm | 300mm | 180mm | Find out more |
| CHDX8-232 | CHDX8-232C | 400mm | 300mm | 180mm | Find out more |
| CHDX8-233 | CHDX8-233C | 500mm | 400mm | 200mm | Find out more |
| CHDX8-234 | CHDX8-234C | 630mm | 530mm | 255mm | Find out more |
| CHDX8-235 | CHDX8-235C | 830mm | 630mm | 185mm | Find out more |
| CHDX8-236 | CHDX8-236C | 830mm | 630mm | 285mm | Find out more |
ABS
| Solid lid | Clear lid | Length | Width | Height | Product details |
| CHDX8-321 | CHDX8-321C | 260mm | 110mm | 75mm | Find out more |
| CHDX8-322 | CHDX8-322C | 260mm | 110mm | 100mm | Find out more |
| CHDX8-323 | CHDX8-323C | 185mm | 135mm | 85mm | Find out more |
| CHDX8-324 | CHDX8-324C | 185mm | 135mm | 100mm | Find out more |
| CHDX8-325 | CHDX8-325C | 220mm | 170mm | 110mm | Find out more |
| CHDX8-326 | CHDX8-326C | 270mm | 170mm | 110mm | Find out more |
| CHDX8-327 | CHDX8-327C | 300mm | 200mm | 150mm | Find out more |
| CHDX8-328 | CHDX8-328C | 300mm | 200mm | 180mm | Find out more |
| CHDX8-329 | CHDX8-329C | 210mm | 210mm | 100mm | Find out more |
| CHDX8-330 | CHDX8-330C | 350mm | 250mm | 180mm | Find out more |
| CHDX8-331 | CHDX8-331C | 300mm | 300mm | 180mm | Find out more |
| CHDX8-332 | CHDX8-332C | 400mm | 300mm | 180mm | Find out more |
| CHDX8-333 | CHDX8-333C | 500mm | 400mm | 200mm | Find out more |
| CHDX8-334 | CHDX8-334C | 630mm | 530mm | 255mm | Find out more |
| CHDX8-335 | CHDX8-335C | 830mm | 630mm | 185mm | Find out more |
| CHDX8-336 | CHDX8-336C | 830mm | 630mm | 285mm | Find out more |
View our full range of X8 Series enclosures or call our experienced technical sales team to discuss your requirements on 01638 716101. Alternatively please complete the enquiry form below or email sales@camdenboss.com.
